A3 8Y OCTAVIA MK4 CAMERA INSTALL
https://www.youtube.com/watch?v=rWVycZsKrEU

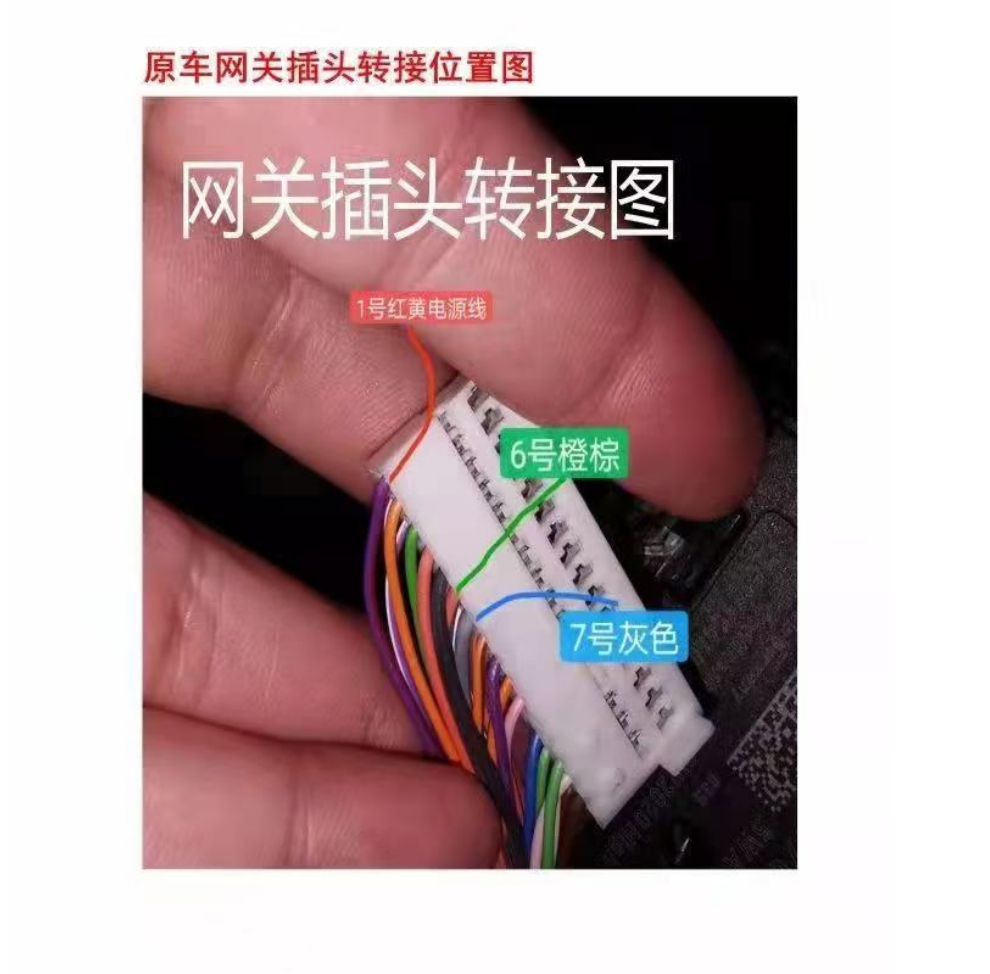

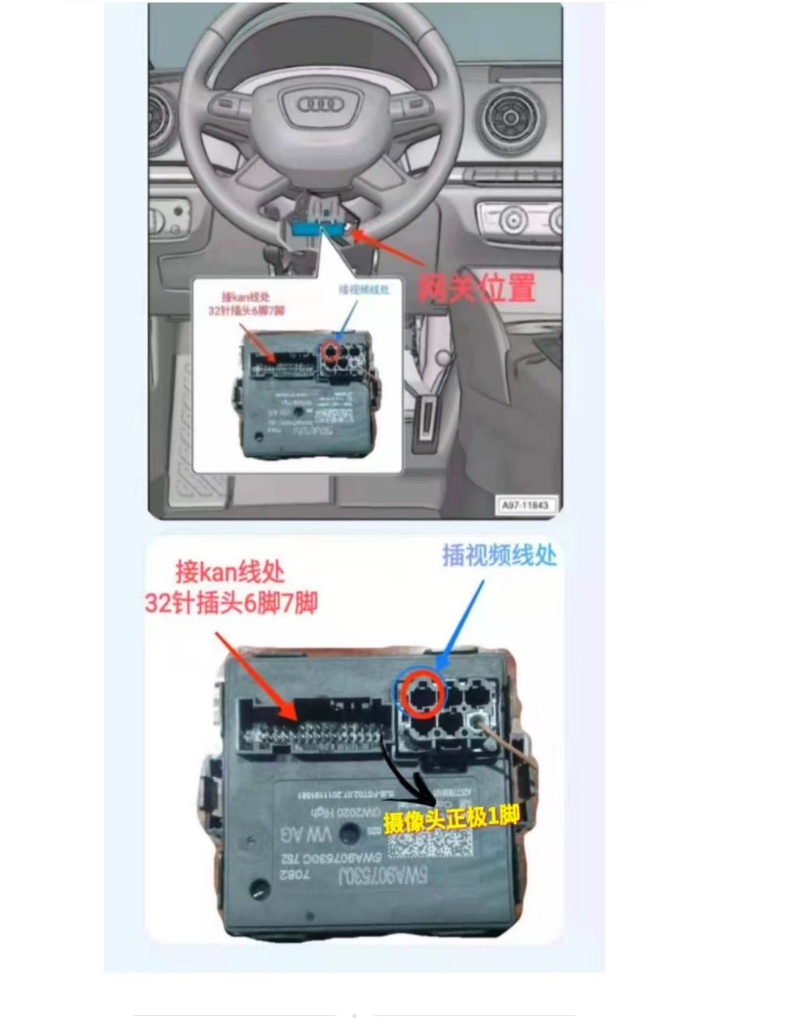

orange/grey --------------------- J533 T32/7
orange/brown--------------------- J533 T32/6
Brown ----- GND
red yellow ----------- J533/1
1. install need do odis online coding
2. Need to write camera parameters (use odis -e )
You need to have GeKo account to be able to unlock car via Odis online, get the token and unlock sfd protection.
The token will unlock the car only for 90 minutes.
------
Octavia MK4 NX long code is : 03032200A53000
19 gateway :
Btye 15 --- 02 change to 12
Btye 16 --- 01 change to 51
Btye 18 --- 10 change to 20
Btye 20 --- 00 change to 02
5F — Adaptation :
function_configuration_unit ---- select ' RVC_video_input '
" FBAS" change to " Ethernet "
Car_Funktion_List_BAP_Gen2_VPS_0x0B ------ Switch to activated Car_Funktion_List_BAP_Gen2_VPS_0x0B_msg_bus ------ choose " terminal 15 "
LHD 6C CODE IS : 01 03 10 00 80 20 00
RHD 6C CODE IS : 01039000842000
==========================================
For cars without parking sensors Front and rear. You have to set pdc to active in 5F so mmi screen switch when put in reverse
Vehicle menu command-menu_display_pdc over threshold ---- active
Vehicle menu command-menu PaCo ------ activated
Vehicle menu command-menu_PaCo_over_threshold -----active
Vehicle menu command-menu display pdc --- avtive
=====================================================
